Features

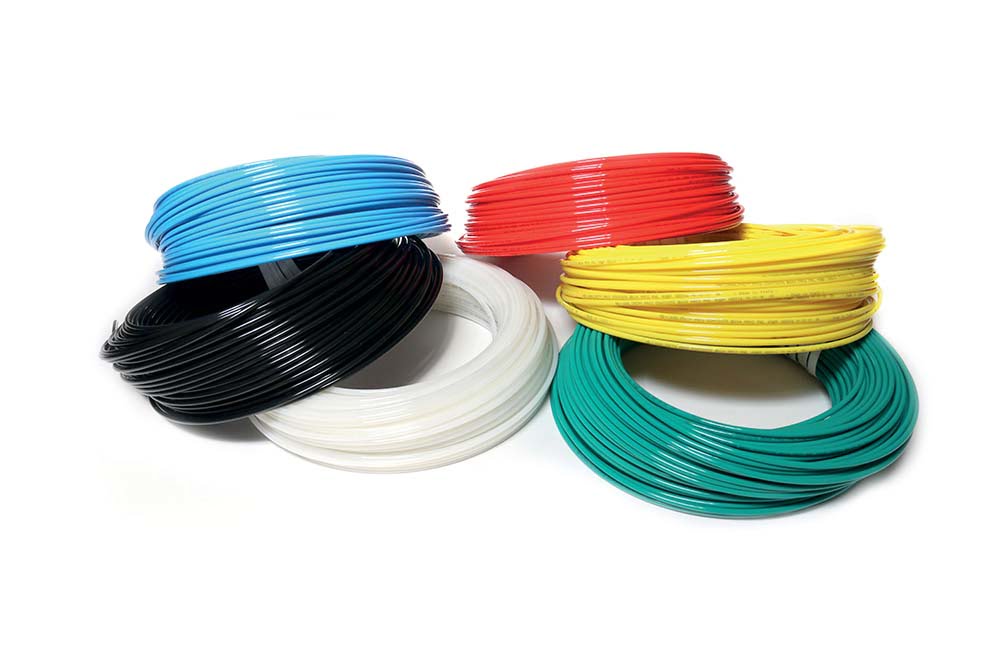

Polyamide tube 10.12 PHL flexible plasticized, stabilized in light and heat. It was born as an alternative product to PA 12, of which it shares all the qualities, while ensuring consistency in the availability of the raw material. To ensure its quality, the ISO 7628:2010 certification obtained by tuv confirms its suitability for use in automotive applications.
Standard lengths
25-50-100 m
Sector
INDUSTRIAL
AUTOMOTIVE
Norms and declarations
ISO 7628:2010
Applications
INDUSTRIAL AUTOMATION
ROBOTICS
VACUUM
CHEMICAL RESISTANCE
DISINFESTATION
AIR BRAKE SYSTEM
Products & Details
| Part number | Inner diameter (iØ) | Outer diameter (oØ) | Wall thickness | Minimum bending radius | Operating pressure (23°C) | Standard colors |
| PAT2X4 | 2 mm | 4 mm | 1 mm | 15 mm | 50 BAR | N T |
| PAT4X6 | 4 mm | 6 mm | 1 mm | 30 mm | 30 BAR | N BS A G T V |
| PAT6X8 | 6 mm | 8 mm | 1 mm | 50 mm | 21 BAR | N BS A R T |
| PAT6X9 | 6 mm | 9 mm | 1.5 mm | 40 mm | 30 BAR | N T |
| PAT7.5X10 | 7.5 mm | 10 mm | 1.25 mm | 60 mm | 21 BAR | N T |
| PAT8X10 | 8 mm | 10 mm | 1 mm | 80 mm | 16 BAR | N BS A R T |
| PAT9X12 | 9 mm | 12 mm | 1.5 mm | 75 mm | 21 BAR | N T |
| PAT10X14 | 10 mm | 14 mm | 2 mm | 75 mm | 25 BAR | N T |
| PAT12X15 | 12 mm | 15 mm | 1.5 mm | 115 mm | 16 BAR | N T |
| PAT12X16 | 12 mm | 16 mm | 2 mm | 95 mm | 21 BAR | N T |
| PAT14X18 | 14 mm | 18 mm | 2 mm | 125 mm | 18 BAR | N T |
Pressure & temperature
Operating temperature: from -40°C to 80°C
Safety factor on working pressure: 3:1
