PA 12 ETHER-HF AIR MB-LONGLIFE SPIRAL HOSE
E

Polyamide

PA 12 ETHER-HF AIR MB-LONGLIFE® SPIRAL HOSE

Hose hose in PA 12 ETHER-HF AIR. Its trilayer structure and the materials used guarantee excellent working memory and abrasion resistance.

Download Document

Features

PA12EHF spirals boast excellent flexibility combined with excellent elastic memory. The external polyamide layers give excellent chemical resistance ensuring the product, as a whole, resistance and durability over time. We produce spirals with and without straight tails for maximum versatility of use and on request we create spirals to design, even with electric cables.

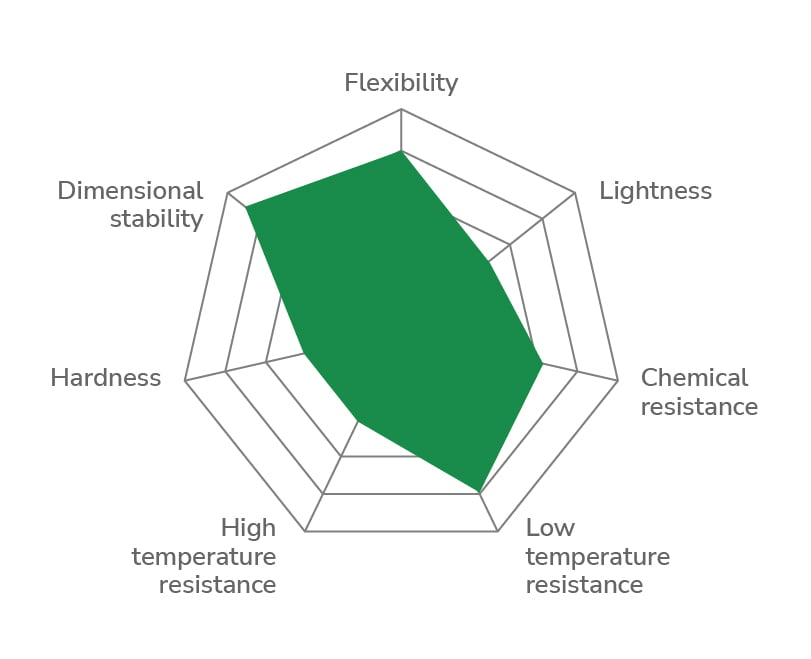

PA 12 ETHER-HF AIR MB-LONGLIFE SPIRAL HOSE - chart

Sector

INDUSTRIAL

Applications

INDUSTRIAL AUTOMATION

ROBOTICS

VACUUM

HYDROLYSIS RESISTANCE
MACHINE TOOLS

UV RESISTANCE

Products & Details

Part numberInner diameter (iØ)Outer diameter (oØ)Wall thicknessMaterial lengthWorking lengthRetracted lengthTurns nTale ATale Bwinding Øouter ØStandard colors
SPA12EHF4X6X7.5C4 mm6 mm1 mm7.5 m5 m258 mm41 N130 mm130 mm50 mm62 mm
SPA12EHF4X6X10C4 mm6 mm1 mm10 m6.5 m353 mm56 N130 mm130 mm50 mm62 mm
SPA12EHF4X6X15C4 mm6 mm1 mm15 m10 m530 mm84 N130 mm130 mm50 mm62 mm
SPA12EHF4X6X304 mm6 mm1 mm30 m19.5 m991 mm157 N0 mm0 mm55 mm67 mm

A



SPA12EHF6X8X7.5C6 mm8 mm1 mm7.5 m5 m286 mm34 N130 mm130 mm60 mm76 mm
SPA12EHF6X8X10C6 mm8 mm1 mm10 m6.5 m387 mm46 N130 mm130 mm60 mm76 mm
SPA12EHF6X8X15C6 mm8 mm1 mm15 m10 m581 mm69 N130 mm130 mm60 mm76 mm
SPA12EHF8X10X7.5C8 mm10 mm1 mm7.5 m5 m263 mm25 N170 mm170 mm80 mm100 mm
SPA12EHF8X10X15C8 mm10 mm1 mm15 m10 m547 mm52 N170 mm170 mm80 mm100 mm
SPA12EHF8X10X308 mm10 mm1 mm30 m19.5 m1010 mm96 N0 mm0 mm90 mm110 mm

A
R
AR
B



SPA12EHF10X12X10C10 mm12 mm1 mm10 m6.5 m353 mm28 N180 mm180 mm100 mm124 mm
SPA12EHF10X12X15C10 mm12 mm1 mm15 m10 m530 mm42 N180 mm180 mm100 mm124 mm
SPA12EHF10X12X3010 mm12 mm1 mm30 m19.5 m997 mm79 N0 mm0 mm110 mm134 mm

Pressure & temperature

^

Operating temperature: from -40°C to 70°C

^

Safety factor on working pressure: 3:1

^

Working pressure 11-21 BAR (23°C)
