Pressure
Diaphragm Seals

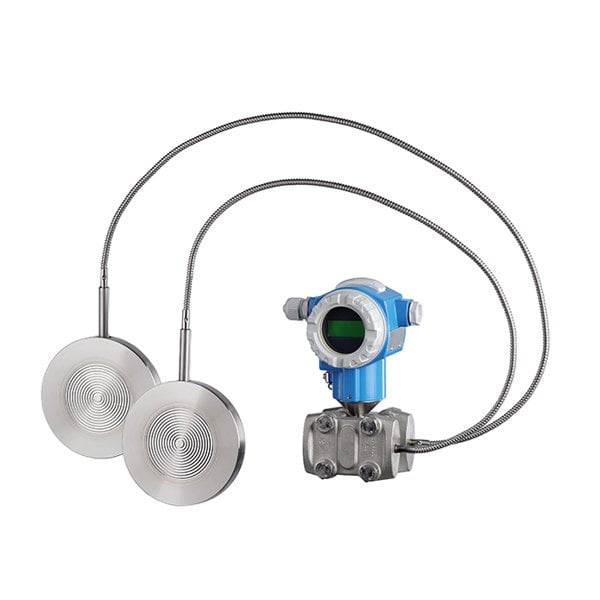

Remote Pancake / Cellular Diaphragm Seal
- For fitting to Gauges, Switches or Transmitters
- High quality product made in UK/EU
- All stainless steel construction with flush welded diaphragm
- DIN EN and ASME flanges
- Other materials and wetted parts available
- Suitable for many applications
SKU: MDM 7550 / 7560
Description
Enhance the precision and reliability of your pressure measurement systems with our Remote Pancake / Cellular Diaphragm Seal, an exceptional product designed for seamless integration with Pressure Gauges, Pressure Switches, or Pressure Transmitters.
The Remote Pancake/Cellular Diaphragm Seal is durable, all-stainless steel with precise craftsmanship. The flush welded diaphragm, composed of 316SS wetted parts as a standard feature, exemplifies our commitment to uncompromising quality.
Whether your needs align with DIN EN Flanges ranging from PN 16 to 400 or ASME Flanges spanning Class 150 to 2500, our diaphragm seal stands ready to exceed your expectations.
Its adaptability makes it suitable for deployment across various industries, including General Industrial, Chemical and Petrochemical, Process Plants, Pharmaceutical, Oil and Gas, Shipping, and Power Generation.
Key Features
Versatile Compatibility: Tailored for seamless integration with Gauges, Switches, or Transmitters, our diaphragm seal enhances the performance of your pressure measurement systems.
Superior Quality, European Craftsmanship: Proudly made in the UK/EU, our product embodies the highest standards of quality, ensuring accuracy and reliability in every application.
Rugged Construction with Flush Welded Diaphragm: The all-stainless steel construction, coupled with a flush welded diaphragm, guarantees robustness, longevity, and resistance to environmental challenges.
DIN EN and ASME Flanges: Choose from various flange options, including DIN EN Flanges PN 16 to 400 or ASME Flanges Class 150 to 2500, allowing seamless integration into diverse systems.
Customization Options: Beyond the standard 316SS wetted parts, our product offers a spectrum of material options, allowing you to tailor the diaphragm seal to specific requirements.
Applications
General Industrial: Robust all-stainless steel construction with flush welded diaphragm. Ensures durability and reliability in diverse industrial environments, maintaining accurate pressure measurements over extended periods.
Chemical & Petrochemical: Customizable materials and wetted parts. Adaptable to corrosive substances, providing a tailored solution for chemical and petrochemical applications.
Process Plants: DIN EN and ASME Flanges compatibility. Seamlessly integrates into various process plant systems, facilitating accurate pressure monitoring and control.
Pharmaceutical: High-quality product made in the UK/EU. Ensures adherence to stringent quality standards, which is critical for pharmaceutical processes requiring precision and reliability.
Oil and Gas: Suitable for DIN EN Flanges PN 16 to 400 or ASME Flanges Class 150 to 2500. Withstands extreme conditions in the oil and gas sector, providing accurate pressure readings for optimal operational safety.
Shipping: Flush welded diaphragm for rugged construction. Withstands harsh maritime conditions, ensuring consistent and reliable pressure measurements in marine applications.
Power Generation: Versatile compatibility with Gauges, Switches, or Transmitters. Enhances efficiency and safety in power generation processes by providing accurate pressure data across various equipment.
Elevate your pressure measurement accuracy. Contact us to discuss your requirements and explore our comprehensive product range.
