Pneumatic systems are the backbone of modern industrial processes, driving efficiency and productivity across various applications. However, these systems often need help with their performance and energy efficiency. Addressing these challenges requires not only technical expertise but also a thoughtful and strategic approach.
To ensure your pneumatic systems operate at their best, it’s crucial first to understand the factors that influence their performance. Armed with this understanding, the next step is to apply targeted strategies that can transform potential issues into opportunities for improvement.
In our previous article, we delved into the Critical Factors Influencing Pneumatic System Efficiency, providing insights into the key elements that affect system functionality.
Now, let’s explore the strategies you can use to achieve your goals and ensure your pneumatic systems are operational and genuinely optimized.
Here are three foundational strategies to help you unlock more significant energy savings and enhance your system’s performance:
- Measure: Start by monitoring and recording essential energy parameters of your pneumatic system using the right tools and technologies. Accurate data is the cornerstone of meaningful improvements.
- Understand: Dive into the dynamics of fluid behavior, analyzing how pneumatic cylinders and valves are performing. This insight helps uncover hidden inefficiencies.
- Intervene: Take proactive actions, such as maintenance, implementing modifications, or applying corrective measures to achieve optimal results.
In this article, we’ll guide you through each of these steps, offering a clear, practical roadmap for addressing inefficiencies in your pneumatic systems. Our aim is to empower you with actionable strategies that lead to tangible results.
As part of a broader initiative, this article continues the discussion on Improving Energy Efficiency in Pneumatic Systems for Sustainable Green Manufacturing, a topic close to our hearts here at Bawalaksana Central Industrial.
As professionals in the field, we all have a role to play in contributing to a more sustainable industrial future. We can make a significant impact by making thoughtful changes and implementing efficient strategies.
If you missed the first two parts of this series, we encourage you to check them out for a complete understanding of elevating your pneumatic system’s performance and productivity.
Now, let’s explore the strategies for optimizing pneumatic systems one step at a time. Together, we’ll uncover your systems’ potential to meet and exceed the demands of a modern, sustainable industry.
Measuring Energy Consumption and Efficiency
Optimizing energy efficiency is not just about technical adjustments; it starts with a deep understanding of your system’s foundation. This knowledge empowers you to make informed decisions and set your operations up for long-term success.
At the heart of this process are two critical parameters: air pressure and airflow rate.
Focusing on these essentials can unlock valuable insights to guide meaningful improvements.
Accurate measurement is more than just data collection—it’s the first step in crafting tailored solutions that enhance the overall performance of your system. With the right approach, you’re not simply troubleshooting; you’re building a more efficient and reliable operation.
To achieve this, begin by monitoring the key energy parameters in your plant. These include:
- Volume flow (Nl/min): Understanding how much air moves through the system.
- Mass flow (Kg/min): Tracking the weight of air used in operations.
- Pressure (BAR): Ensuring the system operates at optimal levels.
- Power (kW): Measuring the energy consumed in real-time.
- Energy (kWh): Calculating the total energy used over a period.
- Temperature (°C): Monitoring for potential heat-related inefficiencies.
- Total air consumption (Nl): Keeping an eye on the overall usage.
- Overall mass consumption (Kg): Evaluating the total input required for production.
By regularly measuring and monitoring these parameters, you can detect early warning signs of inefficiencies. Think of it as a health check for your pneumatic system—minor issues, when caught early, can be addressed before they grow into significant problems.
Taking the time to understand these metrics isn’t just about maintaining a system; it’s about setting your operations up for long-term success. You can move confidently toward a more efficient, sustainable future with the right insights.
Uncovering hidden inefficiencies and potential issues is crucial to optimizing your pneumatic systems’ performance.
For example, identifying air leaks or equipment damage within the plant, evaluating cylinder efficiency, or estimating production costs on the factory floor are all valuable steps toward better operations. These insights help you take control of your energy usage and streamline production.
The more detailed and accurate the data you gather, the more empowered your team will be to identify trends in energy consumption and conduct deeper analyses of your pneumatic system. This level of understanding paves the way for informed decisions and meaningful improvements.
With this data, you can also take precise corrective actions, such as modifying or maintaining equipment to enhance performance. Beyond immediate fixes, you can even predict and evaluate system installations for long-term planning, ensuring your operations remain efficient and future-ready.
Real-time monitoring of air pressure and flow rates is a game-changer. Using the right tools, you can instantly detect air leaks and monitor energy consumption as they happen. This allows you to track energy use across the factory floor, aligned with project timelines and operational demands.
If energy consumption spikes beyond acceptable levels, these tools make investigating and addressing potential issues easier before they escalate. By acting early, you not only minimize energy losses but also prevent minor problems from turning into costly breakdowns.
One standout pneumatic plant monitoring solution is the Metal Work Pneumatic Flowmeter. This advanced device records operational data and provides comprehensive monitoring of energy parameters. Its cutting-edge IoT-based real-time pneumatic pressure monitoring and notification system ensures you stay informed and in control.
The Flowmeter’s versatility allows it to connect seamlessly to various devices through wired or wireless setups, enabling easy integration with computers, tablets, and smartphones.
Equipped with modern features and innovative technology, the Flowmeter isn’t just a tool; it’s an essential companion for improving the efficiency and reliability of your pneumatic systems. With it, you’ll be equipped to take your operations to the next level.
Performance Analysis and Work Cycle of Pneumatic Devices
When analyzing operational data and performance in industrial automation systems, it’s crucial to recognize the importance of both quantitative and qualitative data at the machine level.
This topic is vast, and effectively addressing it requires specialized data processing tools.
Let’s take a step back and examine data management in Industry 4.0, particularly how it relates to the statistical and diagnostic data generated at the pneumatic machine level. This perspective is key to unlocking greater efficiencies in your system.
Data Management in Industry 4.0
In the context of pneumatic systems, Industry 4.0 represents the integration of digital technologies into manufacturing. This integration allows for collecting and analyzing vast amounts of data, providing insights that can significantly improve efficiency and productivity.
In Industry 4.0, data management is often visualized as a pyramid. At the top are systems like ERP and supervisory controls, and as you move down, data management increasingly focuses on the processing machines themselves.
These machines, however, aren’t simple—they’re made up of hundreds of components that must be carefully managed, including electric actuators, pneumatic cylinders, valves, limit switches, regulators, and more.

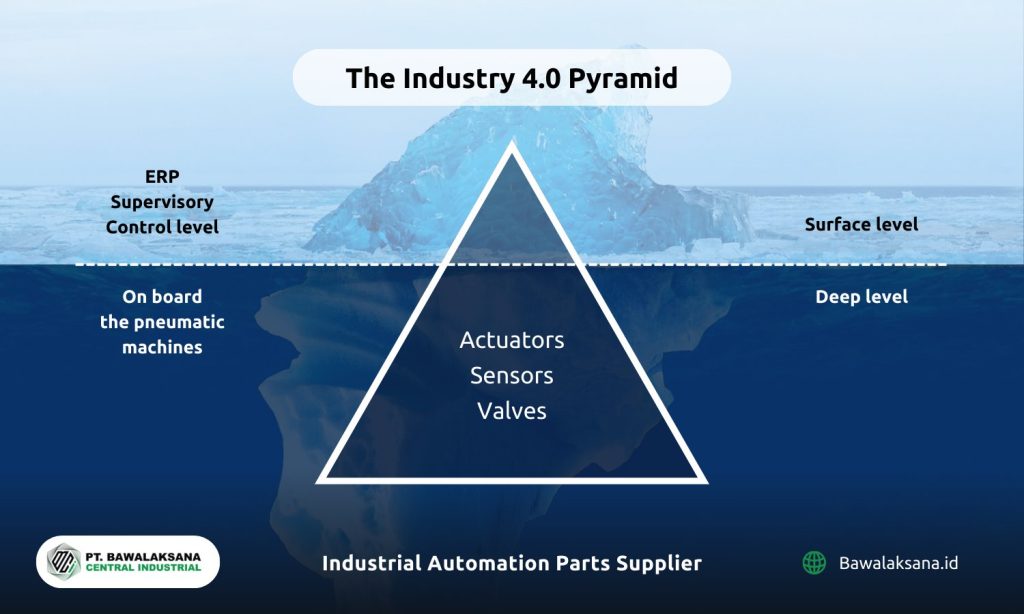

The reality is that the data we manage at the lower levels is like an iceberg—what you see above the surface is just a small part of the bigger picture.
The unseen data, which is far more substantial, requires far more attention. It is where data processing at the machine level comes in, where pneumatic systems perform the crucial work.
While PLC-based data management is a common practice, it’s not the ideal solution alone. The technology overlooks statistical data, diagnostics, and preventive maintenance for each actuator and sensor in your pneumatic system.
As a result, critical machine-level data that should be actively monitored often needs to be addressed and better managed.
We truly understand how essential it is to have diagnostic tools to capture statistical and diagnostic data at the machine level. With the right technology, we can take meaningful steps to optimize energy efficiency and performance, ensuring your pneumatic systems run at their absolute best.
Diagnostic Devices for Pneumatic Machines
In today’s world, an impressive range of technologies can comprehensively capture statistical data at the pneumatic machine level. However, to fully harness this potential, the right sensors and mini processors are required, embedded within the device, to store data for long periods.
This setup ensures that crucial data regarding the machine’s algorithms remains intact—even when your engineering team is making extensive modifications or repairs to the hardware. The data is preserved, so you can always rely on it for analysis.
At the pneumatic machine level, several key pieces of information need to be recorded to ensure smooth operation:
For Solenoid Valves:
- Open or short circuits
- Missing or disconnected valves
- Insufficient or peak voltage
- Disrupted signal transmission
- Solenoid valve cycles
For Pneumatic Cylinders:
- Response time
- Average cylinder speed
- Number of steps completed
By thoroughly capturing this data at the level where your pneumatic machines are operating, you can accurately diagnose potential issues—whether they relate to power supply disturbances, pneumatic hose leaks, increased load, device modifications, or cylinder component wear.
With the right technology, you can gather both quantitative and qualitative data, which can then be processed at the PLC level for deeper insights and more informed decision-making.
One of the standout solutions we highly recommend is the EB80 Electro Pneumatic from Metal Work Pneumatic.

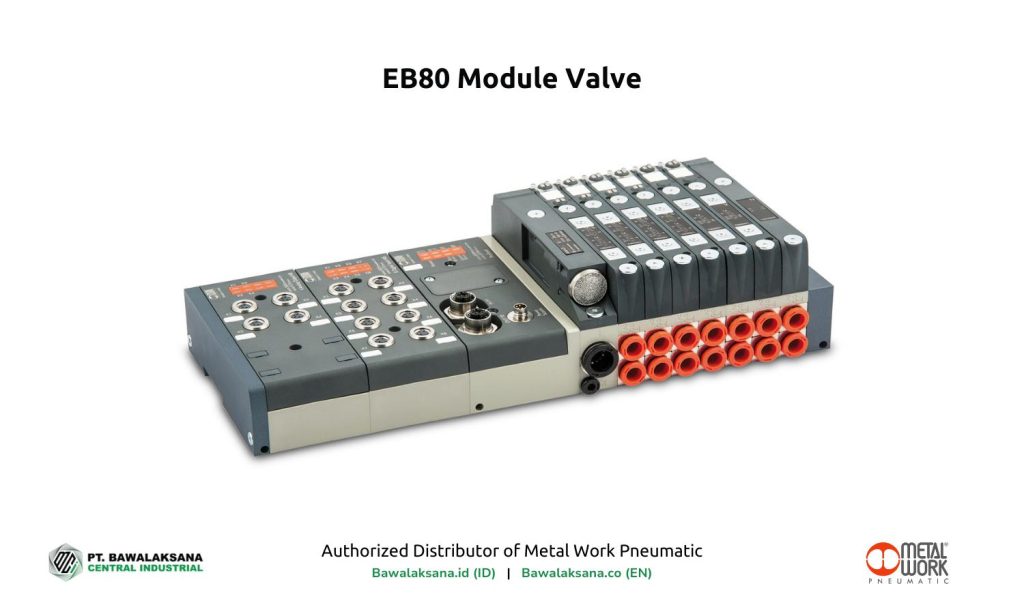

The EB80 is a modular valve island that seamlessly exchanges information with the PLC. Even more impressive is that it can control cylinder movements and read digital signals from sensors without relying on the PLC—such as cylinder cycles, response times, etc.
The EB80 Valve Island is a versatile and powerful diagnostic arsenal tool.
Using the Flowmeter and EB80 Electro-Pneumatic makes recording both quantitative and qualitative data at the machine level more manageable than ever.
Once you have this data, the next step is to dive into comprehensive data analysis and predictive diagnostics, which can help you boost the efficiency of your pneumatic system right on the factory floor.
Simply put, the data you’ve gathered can now be turned into actionable steps, driving your pneumatic system to perform at its best.
When you implement the EB80 Valve Island, your company will enjoy a wide range of benefits, such as:
- Preventing component damage before it happens
- Taking proactive measures to avoid downtime on the factory floor
- Collecting real-time insights on equipment performance
- Predicting the lifespan of pneumatic components
- Streamlining spare parts management in your warehouse
- Evaluating system installations for long-term efficiency
- And the best part? The data stored can last up to 50 years
With these advantages, you’re not just optimizing your system—you’re building a foundation for long-term success.
Taking Corrective Action to Optimize Performance
Corrective intervention is a strategic step to ensure your pneumatic system operates at its best. By addressing potential issues head-on, you can prevent more significant problems and keep operational costs under control.
Corrective actions aim to maintain your system’s health, but they require effort and should always be guided by reliable and comprehensive data. With the right insights, you can take targeted steps to improve system performance while avoiding unnecessary trial and error.
These interventions involve predictive maintenance, modifying cylinder components, adding new devices, or upgrading to more advanced pneumatic technologies. Each action is vital in ensuring your system remains efficient and productive.
As we’ve highlighted earlier, two critical types of data are indispensable for this optimization process:
- Energy parameters, such as pressure and airflow rates, are measured using a Flowmeter.
- Digital signals and pneumatic machine algorithms gathered through the EB80 Modular Valve.
When these data points are available, you can take concrete steps toward optimizing your pneumatic machines. It could include upgrading components, fine-tuning system settings, or implementing advanced monitoring tools.
For a deeper understanding of these steps, we invite you to explore the next part of this discussion in our article, How to Optimize Pneumatic Cylinder Performance for Greater Productivity.
This guide will walk you through actionable strategies to unlock your system’s full potential.
*****
PT. Bawalaksana Central Industrial proudly serves as an Authorized Distributor of Metal Work Pneumatic, delivering high-efficiency pneumatic devices and components designed to meet your business needs.
If you’re ready to dive into analyzing energy parameters and pneumatic machine algorithms with tools like the Flowmeter and EB80 Valve Island, we’re here to provide comprehensive support every step of the way.
As industrial spare parts and automation systems experts, we’ve built strong, lasting partnerships with manufacturers across Asia and Europe. These connections allow us to offer complete, reliable technical solutions tailored to your company’s maintenance and repair requirements.
With more than 7 years of experience and a team of professional engineers by our side, we are committed to helping you achieve the highest level of efficiency in your pneumatic systems. Our expertise ensures your systems are not only optimized but also ready to support your business growth.
Take the first step toward transforming your operations today by implementing Metal Work pneumatic system automation. We can help your company increase production capacity and increase profitability.
Let’s start the conversation! Contact our professional team for tailored recommendations by clicking the consultation button below.
