Polyamide
TRIPLE LAYER HOSE FIREPROOF
Flexible linear hose in PA 12 PHL MB-LONGLIFE® covered with dense PBT braid and protective sheath in self-extinguishing ether base polyurethane. Product used in applications where sparks and welding slag come into contact with the surface with discreet frequency.
Features
Internal tube in polyamide 12 PHL plasticized, stabilized in light and heat, protected by a central layer composed of a dense mesh woven PBT wire texture and an outer layer of UL 94 V0 self-extinguishing base polyurethane. The unpaired PBT wire braid, in addition to offering additional protection to the inner tube from sparks and welding slag, facilitates and speeds up assembly operations, allowing on the one hand, to unsink the product without the risk of ruining the outer surface of the inner tube and on the other, once the pipe is installed, it guarantees protection to the inner tube part between the end of the fitting and the point where the pipe was unseaded.
Standard lengths
25-50-100 m
Recommended fittings
All types of pneumatic fittings (quick, semi-quick, fit, bicone, rubber carrier…).
Sector
INDUSTRIAL
AUTOMOTIVE
Norms and declarations
DIN 73378
DIN 74324
UL94 V0
Applications
ROBOTICS
VACUUM
CHEMICAL RESISTANCE
FLAMMABILITY
Products & Details
| Part number | Inner diameter (iØ) | Outer diameter (oØ) | Wall thickness | Minimum bending radius | Operating pressure (23°C) | |
| TS-PA2.5X4+6.5 | 2.5 mm | 4 mm | 0.75 mm | 15 mm | 30 BAR | 6.5 |
| TS-PA4X6+8.5 | 4 mm | 6 mm | 1 mm | 30 mm | 26 BAR | 8.5 |
| TS-PA6X8+10.5 | 6 mm | 8 mm | 1 mm | 50 mm | 19 BAR | 10.5 |
| TS-PA7.5X10+12.5 | 7.5 mm | 10 mm | 1.25 mm | 60 mm | 19 BAR | 12.5 |
| TS-PA9X12+14.5 | 9 mm | 12 mm | 1.5 mm | 75 mm | 19 BAR | 14.5 |
Pressure & temperature
Operating temperature: from -40°C to 80°C
Safety factor on working pressure: 3:1
Working pressure 19-30 BAR (23°C)
Related Products
TRIPLE LAYER HOSE FIREPROOF
Flexible linear hose in PA 12 PHL MB-LONGLIFE® covered with dense PBT braid and protective sheath in self-extinguishing ether base polyurethane. Product used in applications where sparks and welding slag come into contact with the surface with discreet frequency.
-40º/+80ºC
Operating temperature
19-30 BAR
Working pressure (23ºC)
Polyamide

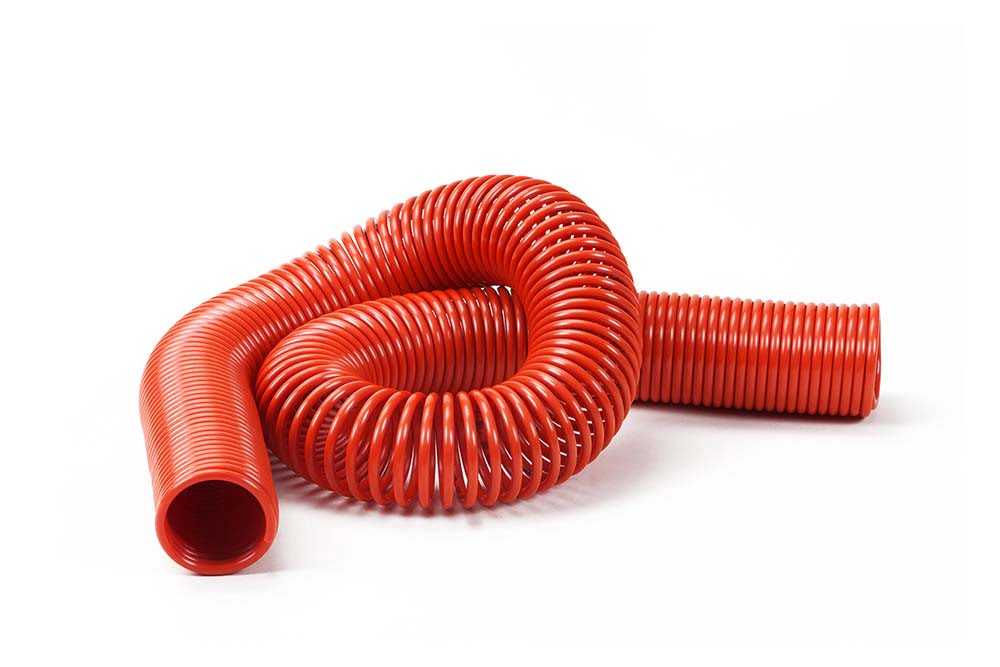

NYLON P.10 SPIRAL HOSE
Spiral tube without codoli, nylon P.10.
-20º/+60ºC
Operating temperature
9-23 BAR
Working pressure (23ºC)
Polyamide
AIR BRAKE SPIRAL HOSE
Spiral hose in PA 12 PHL dedicated to the compressed air connection between tractor and trailer on original equipment and after-market.
DIN 73378
European reference standard
4 Colors
Number of colors
Polyamide

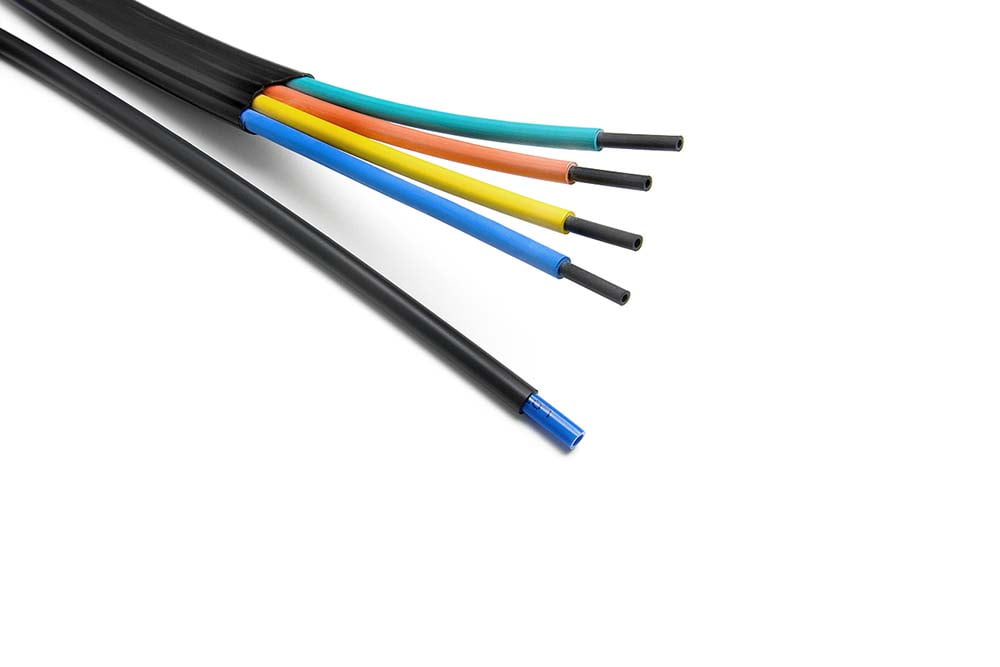

DOUBLE LAYER ANTI-SPATTER HOSE
