In the dynamic environment of the petrochemical industry, the importance of precise process monitoring and control extends beyond mere production maintenance; it encompasses environmental protection, workforce safety, and the delivery of superior quality outcomes.
These outcomes include the production of high-quality petrochemical products, the prevention of environmental pollution, and the maintenance of a safe working environment. Each detail is crucial, with one particularly significant instrument emerging as essential: the Differential Pressure Gauge.
The Differential Pressure Gauge is a measurement tool to detect excessive pressure differences between upstream and downstream systems. Identifying these imbalances enables operators to take precise and timely actions to prevent explosions or damage during ongoing processes, ensuring safety and operational reliability.
In this article, the Bawalaksana team invites you to explore the critical role of Differential Pressure Gauges. The discussion will encompass:
- The definition and operational mechanics of a Differential Pressure Gauge
- The fundamental functions and principles underlying this instrument
- Its essential role in enhancing safety within the petrochemical sector
- Its significant contribution to ensuring operational stability
- Guidance on selecting the appropriate Differential Pressure Gauge to meet your specific requirements
Why is Differential Pressure Gauge Important?
Pressure fluctuations can be sudden and unpredictable, often occurring without prior indication. If they exceed a system’s capacity, they may result in catastrophic failures, such as equipment explosions. The Differential Pressure Gauge, a crucial tool in the petrochemical industry, plays a significant role in preventing such catastrophic failures, thereby reassuring professionals about its importance in mitigating potential risks.
Additionally, the ramifications of such events can have long-lasting implications on the environment and operational continuity within industrial settings.
Differential Pressure Gauges emerge as critical assets in this context. They are indispensable because they provide precise, real-time data, particularly in high-stakes sectors such as petrochemicals, oil and gas, and heating installations.
Beyond serving as a mere instrument, the Differential Pressure Gauge is a protective mechanism, diligently working to ensure smooth and secure operations. Its importance cannot be overstated, as it reminds us that meticulous attention to detail fosters a safer and more sustainable industrial future.

What is a Differential Pressure Gauge?
A Differential Pressure Gauge is an essential instrument in industrial processes. It measures the pressure differential between two reference points, commonly identified as upstream and downstream. The gauge operates by comparing the pressure at the upstream point with the pressure at the downstream point. The difference in these pressures, known as the ‘differential pressure,’ is then displayed on the gauge’s dial or digital readout.
This instrument is straightforward and highly effective. It ensures the systems’ smooth operation while mitigating potential complications.
In various industrial applications, fluids—whether gaseous or liquid, ranging from low to high viscosity—typically traverse multiple filtration stages.
This operational framework inherently generates pressure differentials between the upstream side, which is located before the filter or strainer, and the downstream side, positioned after it. Generally, the upstream side experiences a higher pressure than the downstream side.
However, an excessive pressure differential serves as a critical warning indicator. Such a condition signifies that the filter or strainer may be obstructed, necessitating prompt intervention, such as cleaning or replacement. Failure to address this issue can result in significant repercussions, including equipment damage or, in severe instances, catastrophic failures.
In this context, the Differential Pressure Gauge is pivotal as a vigilant monitor. It enables operators to detect potential blockages early, ensuring the system’s safe and efficient functioning.
The significance of this instrument cannot be overstated. Its precision and dependability are crucial for maintaining uninterrupted industrial operations. A malfunctioning gauge that fails to deliver accurate and consistent readings undermines the operator’s ability to identify filtration-related issues promptly, thereby increasing the risk of costly disruptions and potential hazards.
By investing in a reliable Differential Pressure Gauge, industries safeguard their assets and prioritize the safety and well-being of their personnel. This compact instrument plays a substantial role in protecting the integrity of critical processes.

Function and Working Principle of a Differential Pressure Gauge
A Differential Pressure Gauge is an essential instrument in efficiently operating industrial systems. Its primary function is to measure the pressure differential, fluid viscosity, and flow rate between two distinct points. For instance, it can accurately identify pressure variations before and after a pipe constriction or filtration process, as illustrated in the DPG Diagram.
This sophisticated gauge is engineered specifically for demanding sectors, including petrochemicals, oil and gas, and air handling applications. Its adaptability enables it to measure a broad spectrum of pressures, encompassing both high, low, and static pressures, thereby rendering it an indispensable tool for these critical industries.
The Differential Pressure Gauge’s value is most evident in its capacity to enhance safety and efficiency. In the petrochemical sector, for example, it functions as an early-warning mechanism by detecting significant pressure differentials that may signify potential system issues. This proactive approach allows operators to address concerns before they escalate, thus safeguarding both equipment and personnel.
This instrument’s precision is rooted in Bernoulli’s Principle, which elucidates how a pressure differential between two points induces variations in flow velocity.
By applying this fundamental principle, the Differential Pressure Gauge delivers accurate and reliable measurements, enabling industries to manage their operations confidently and precisely.
In sum, whether it facilitates process safeguarding or performance optimization, the Differential Pressure Gauge is a critical yet unobtrusive instrument in advancing industrial success.
The Significance of Differential Pressure Gauges in the Petrochemical Industry
In the dynamic and high-stakes environment of the petrochemical industry, the Differential Pressure Gauge serves a vital role in enhancing safety standards. Its capability to monitor pressure differences between two points provides essential information that can aid in the early detection of potential issues before they escalate into significant problems, empowering operators to maintain control over system operations.
The following outlines several critical functions of this indispensable tool in maintaining operational safety and efficiency, thereby instilling a sense of security and confidence in the operators:
Detection of Leaks and Pressure Drops
Sudden pressure drops may occur unexpectedly, posing severe risks if not addressed promptly. The differential pressure gauge functions as an early warning system, alerting operators to possible leaks or pressure reductions. This timely notification enables quick response measures, thereby preventing catastrophic failures.
Identification of Blockages in Filters or Strainers
Clogging in filters or strainers can lead to a marked increase in pressure on the upstream side. This change is readily observable through the gauge, facilitating necessary maintenance or replacement of the filter before it disrupts system operations.
Monitoring of Fluid Flow Rates in Pipelines
An abrupt modification in flow rate may indicate underlying issues within a pipeline, such as a leak or component damage. By measuring pressure differences, the differential pressure gauge assists in the early identification of flow irregularities, enabling operators to rectify the situation before further damage occurs.
Measurement of Liquid Levels in Storage Tanks
Variations in pressure can also reflect changes in liquid levels within storage tanks. A sudden deviation from established pressure patterns may suggest a leak or structural concern, thus allowing operators to intervene and mitigate potential hazards.
Detection of Pump Wear or Malfunction
A notable decrease in pressure at the pump outlet may signal impending wear or malfunction of the pump. The differential pressure gauge can detect such issues early, allowing for timely repairs or replacements and preventing the situation from deteriorating.
Identification of Leaks in Sealed Systems
In systems that require airtight or watertight integrity, a sudden pressure drop typically indicates a malfunction, likely due to a leak. The gauge’s early identification of these leaks is critical for maintaining system integrity and preventing subsequent complications.
In summary, the Differential Pressure Gauge transcends its role as a mere instrument; it is essential in ensuring the safe, smooth, and efficient operation of petrochemical processes. Its ability to monitor pressure and provide real-time insights is pivotal in preventing accidents, minimizing risks, and safeguarding personnel and equipment in sectors where safety is paramount.
By incorporating differential pressure gauges into operational protocols, companies enhance efficiency and establish a proactive safety framework that consistently sustains smooth operations. This tool allows teams to anticipate potential challenges, fostering a safer and more sustainable operational environment for all stakeholders involved.

The Essential Role of Differential Pressure Gauges in the Petrochemical Industry
Differential pressure gauges are critical instruments in the petrochemical industry, indispensable in ensuring safety, operational efficiency, and precision. To fully comprehend their significance, examining various practical applications where these gauges exert a substantial impact is essential.
Facilitating Efficient Refining Processes
Accurate monitoring is pivotal in refining operations within the petrochemical sector to ensure seamless functionality. Differential pressure gauges excel in this capacity by measuring pressure differentials between two significant points, such as storage tanks or sections of pipelines. By reading accurate measurements, these gauges enable operators to easily maintain control and optimize processes.
Protecting Filters and Mitigating Blockages
Filters within industrial systems are vital for maintaining cleanliness and operational efficiency; however, they are susceptible to clogging over time.
Differential pressure gauges act as vigilant monitors, identifying early indicators of blockage. For example, as debris accumulates within a filter, the upstream pressure will rise while the downstream pressure will decline.
The gauge swiftly detects this imbalance, allowing operators to replace the filter proactively. Thus, potential hazards such as high-pressure build-ups, which can result in hazardous incidents, are prevented.
Ensuring Confident Fluid Flow Management
Fluid flow management is a critical function in sectors such as petrochemicals and mining. Differential pressure gauges provide a dependable method for measuring flow rates, whether dealing with slurries in mining operations or raw materials in processing facilities.
For instance, when a slurry containing liquid, solids, or soil is transported, precise control of the process is necessary for effective component separation.
Differential pressure gauges promote safety and efficiency in operations by monitoring flow rates and ensuring turbidity levels remain within acceptable parameters.
Facilitating Accurate Fluid Density Measurement for Enhanced Separation
Separating undesired particles from crude oil demands high accuracy in petrochemical processes. Differential pressure gauges provide vital data regarding fluid density, enabling operators to make informed adjustments. This facilitates the movement of only the desired components through the process, which is critical for achieving high-quality outcomes.
Accurate Measurement of Liquid Levels
Ascertaining the exact liquid level is crucial in various operations, including distillation and storage. Differential pressure gauges simplify and enhance the accuracy of this task, providing reliable readings that support smooth workflows.
These scenarios underscore differential pressure gauges’ versatility and essential nature within the petrochemical industry. They contribute not only to operational efficiency but also to the assurance of safety and reliability.
As we further investigate their myriad advantages, it becomes evident that these instruments are invaluable assets for organizations seeking to maintain a competitive edge in high-risk sectors. Further discussions will explore their capabilities and applications in greater detail.

Guidelines for Selecting the Appropriate Differential Pressure Gauge
The selection process may seem daunting in light of the numerous differential pressure gauges available on the market, each differing in price, quality, type, and compliance with relevant standards.
Choosing an appropriate gauge that ensures precise differential pressure measurements is imperative. This will mitigate the likelihood of malfunctions, which is vital for the uninterrupted operation of industrial processes.
Please consider The following key factors when making an informed choice for your specific industry:
Align Technical Specifications with Industry Requirements
When selecting a differential pressure gauge, it is crucial to comprehend the minimum technical specifications necessary for your application. Various pressure gauges provide differing levels of accuracy, influenced significantly by their design and cost.
If you want to guarantee precision in measurements, it is advisable to prioritize gauges that comply with the EN837 Class 1.6 standard. A Class 1.6 differential pressure gauge permits a maximum error of merely 1.6% of the full scale, thus ensuring highly accurate readings—an essential characteristic for numerous industrial applications.
Furthermore, EN837 represents the European standard for pressure gauges, confirming that each indicator is fabricated following stringent quality guidelines.

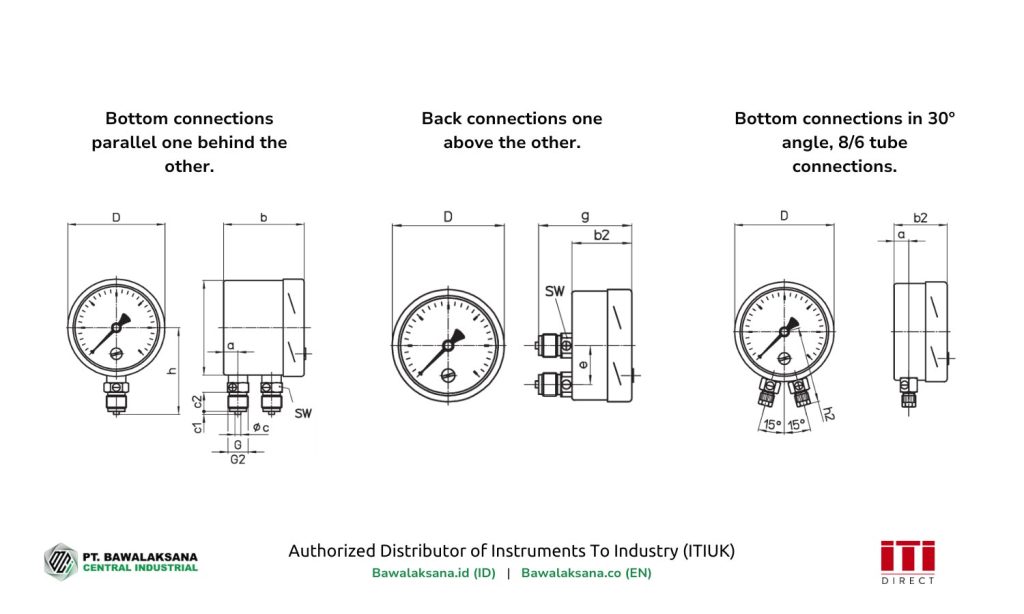

For particular industrial applications, the configuration of the Bourdon tube connector, whether positioned at the bottom or rear of the gauge, should also be considered.
It is recommended that a datasheet from an authorized pressure gauge distributor be requested for a comprehensive understanding of the specifications.

Select High-Quality Stainless Steel Materials
In the petrochemical and gas industries, pressure gauges must exhibit robustness, corrosion resistance, and durability. Stainless steel is regarded as a superior material for these demanding environments.
For operations requiring heightened durability, it is advisable to opt for a pressure gauge constructed from 316 stainless steel (316SS). This material comprises 16% chromium, 10% nickel, and 2% molybdenum, with the molybdenum component significantly enhancing resistance to corrosive substances.
The preference for 316SS over 304 stainless steel (304SS) is mainly due to its superior capacity to endure extreme conditions in sectors such as chemicals, gas, and marine applications (Read: Pressure Gauge Anatomy: Accuracy, Components, and Design).
Determine the Appropriate Pressure Range for Accurate Measurements
Selecting the correct measurement range for your specific application ensures precise readings. The accurate measurement range accommodates pressure fluctuations; it is generally advised to choose a pressure gauge with a range encompassing 25% to 75% of the maximum scale; however, this guideline may vary based on the manufacturer.
For instance, if your company requires the measurement of 70 BAR of pressure, it is highly recommended that you utilize a pressure gauge with a range of 0 to 100 BAR. Conversely, for the measurement of 80 BAR, a gauge featuring a broader measurement range would be advisable.

Differential pressure gauges are available in a variety of measurement ranges, which include:
- 0-400 mBAR
- 0-0.6 BAR or 0-1 BAR
- 0-25 BAR
- 0-600 BAR
In addition to considering the pressure range, you should also consider the gauge’s accuracy. The optimal accuracy class for differential pressure gauges is 1.6 or higher.
By meticulously determining the appropriate pressure range and ensuring the gauge’s accuracy, one can facilitate industrial processes’ smooth and safe operation.
When a significant differential pressure arises between the upstream (high pressure) and downstream (low pressure) interfaces, the gauge will promptly indicate this change, enabling the implementation of necessary precautions to avert potential issues.

In conclusion, the differential pressure gauge is more than just a measurement tool—it’s vital in ensuring efficiency, safety, and seamless operations across various processes in the petrochemical industry. By accurately measuring flow acceleration and maintaining pressure balance, these gauges help optimize production and elevate safety standards, giving you peace of mind in critical operations.
When choosing the correct differential pressure gauge, we’re here to make it simple. Here are three exceptional options we highly recommend:

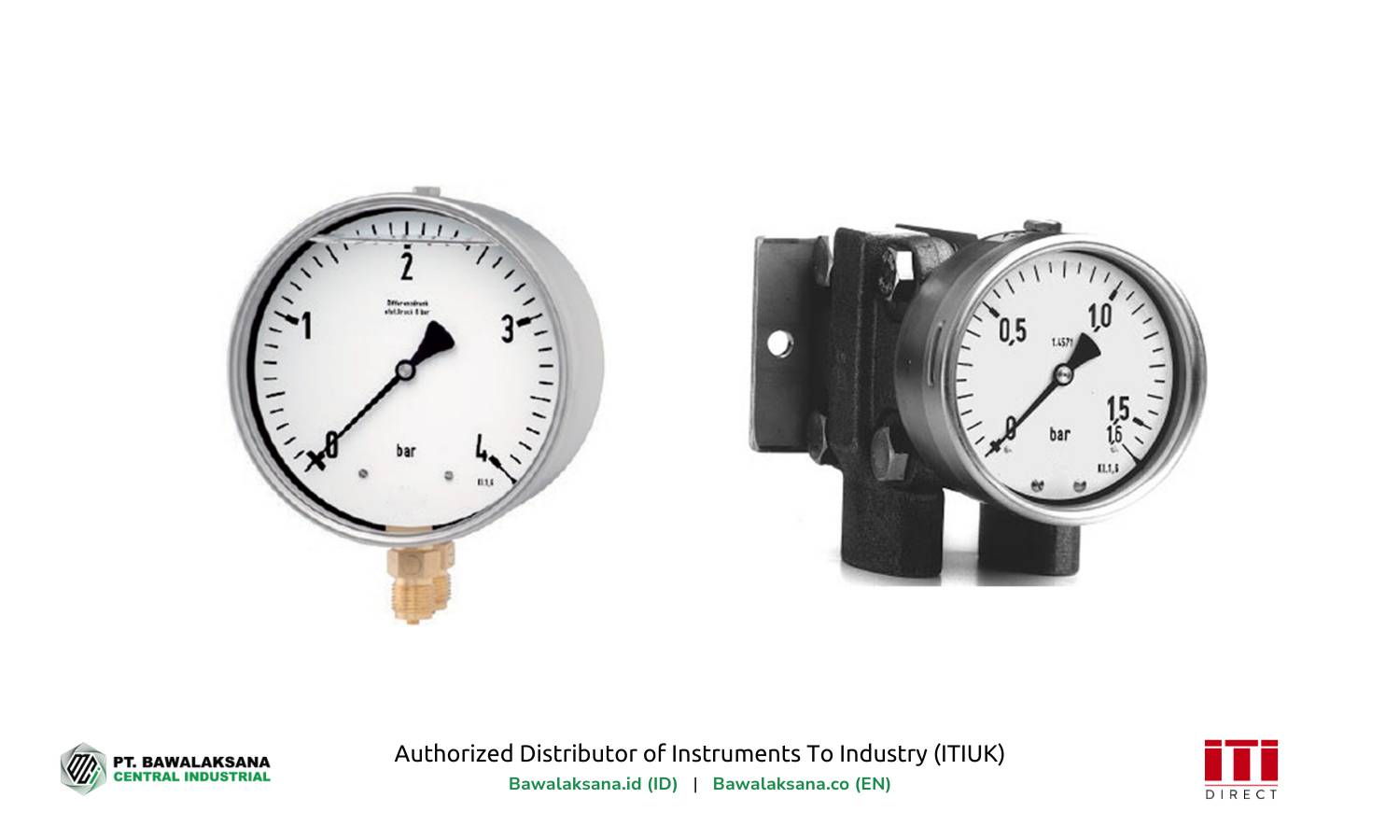

- 160mm Differential Pressure Gauge DIN Case Full Stainless
- Differential Pressure Gauge (Low Diff, High Static)
- Low-Pressure Differential Capsule Gauge
Each of these gauges is meticulously crafted by Instruments To Industry (ITI), a renowned manufacturer based in the United Kingdom. Made from premium-grade stainless steel 316 or 304, these products withstand the demanding environments of the petrochemical and gas industries, offering both durability and reliability.
What’s even better? These gauges meet the stringent European EN837 Class 1.6 standards, ensuring precise measurements you can trust for your operations. It’s a testament to the quality and engineering excellence behind every product.
We’re thrilled to share that PT. Bawalaksana Central Industrial is now an official distributor of Instruments To Industry (ITI). This partnership allows us to bring these world-class products closer to you with the benefit of competitive pricing.
For detailed datasheets or tailored assistance, our friendly Sales Engineer team is just a call away. We’re here to help you find the perfect solution for your needs and make your experience with us as seamless and rewarding as possible.
Ready to take the next step? Click the consultation button below to connect with us and let our experts assist you in finding the ideal product for your requirements.
